Integration command

VS Code Copilot Chat can export OpenTelemetry to Beacon’s local collector. Beacon can configure VS Code user settings, show integration status, and validate whether VS Code-derived events are arriving in the runtime log.
Command syntax

​
Commands

print-config

Print VS Code Copilot OTel setup guidance.

setup

Configure VS Code Copilot OTel settings.

status

Show VS Code endpoint integration status.

validate

Validate whether VS Code events are arriving.
Use the endpoint harness path for first-time setup:
Use the endpoint harness path for first-time setup
This starts Beacon’s local collector and configures VS Code Copilot Chat to export OTLP/HTTP to http://127.0.0.1:4318. Reload VS Code after setup. Validate recent events:
Validate recent events
OTel is the preferred VS Code collection path. It provides Copilot session, prompt, model, and tool activity without requiring VS Code’s preview hook feature.

​
Optional hooks

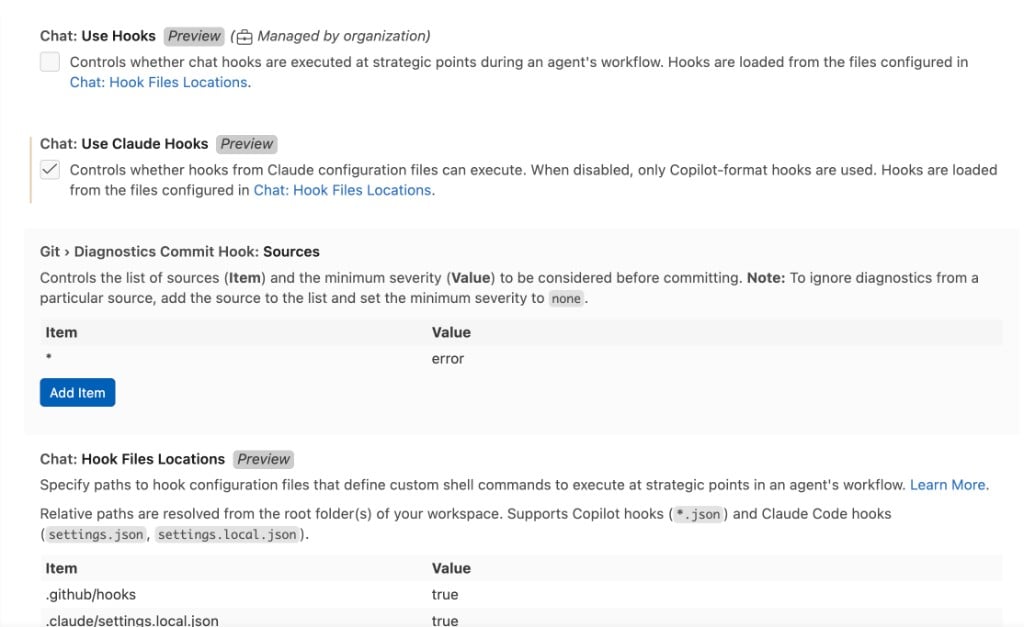

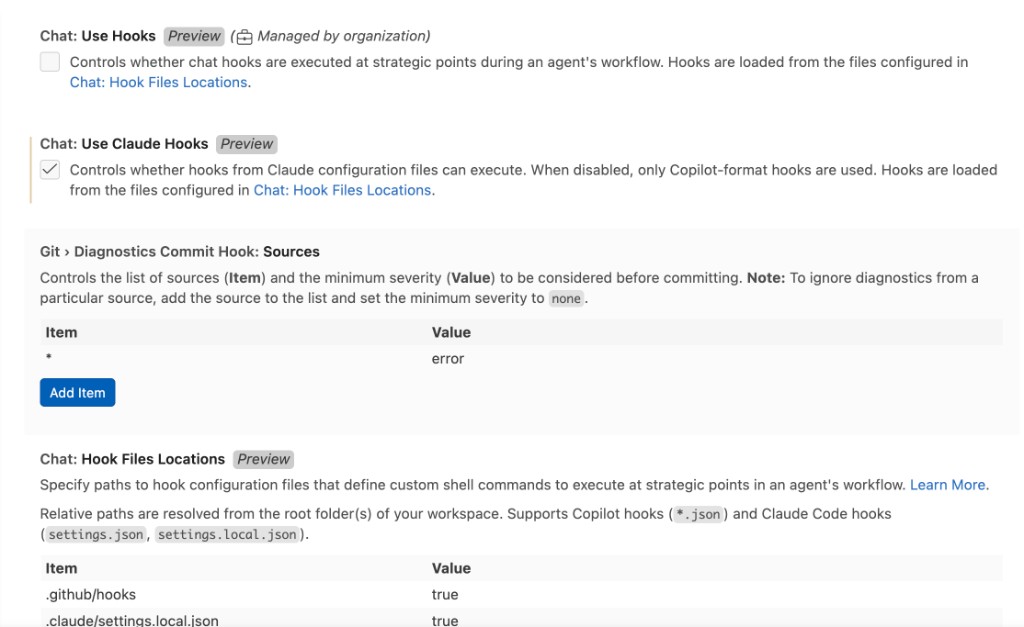

VS Code hooks are currently in preview and may be disabled by organization policy. Use hooks only when you want additional lifecycle/tool detail or cross-agent coverage beyond Copilot’s OTel stream. Before installing hooks, confirm Chat: Use Hooks is enabled in VS Code settings. Chat: Use Claude Hooks is not enough for Copilot-format .github/hooks/*.json files. If Chat: Use Hooks is unchecked and managed by your organization, VS Code will not execute Beacon’s VS Code hook file. VS Code settings showing Chat: Use Hooks disabled and managed by organization, while Chat: Use Claude Hooks is enabled.
Install runtime hooks
Hook-derived events use harness.name=vscode. OTel-derived events use harness.name=vscode_copilot.

​
Flags

​
beacon endpoint integrations vscode print-config

beacon endpoint integrations vscode print-config prints the VS Code Copilot OpenTelemetry settings and setup steps for this endpoint without changing any file. Use it when you manage VS Code settings yourself, for example through an MDM profile or a committed .vscode/settings.json.
Print the settings to apply
--endpoint, --workspace and --capture-content shape the printed settings the same way they shape setup.

​
beacon endpoint integrations vscode setup

beacon endpoint integrations vscode setup writes VS Code Copilot OTel settings without reinstalling the endpoint collector.
Set up the integration
Prefer beacon endpoint install --harness vscode for first-time setup because it configures both the collector and VS Code settings.

​
beacon endpoint integrations vscode status

beacon endpoint integrations vscode status reports whether VS Code is detected, whether Copilot OTel settings point to Beacon, and whether VS Code events have been observed.
Check status
Print status as JSON:
Print status as JSON

​
beacon endpoint integrations vscode validate

beacon endpoint integrations vscode validate checks whether VS Code OTel or hook-derived events have arrived in the endpoint runtime log.
Run the validation check
If validation fails, Beacon prints VS Code setup guidance using any endpoint or workspace path you provide.
